When Should You Use a Soft Starter With a Medium Voltage Motor?
In order to power heavy-duty machinery and equipment, medium voltage induction motors are vital components in several industrial applications. On the other hand, mechanical stress and large inrush currents make starting these motors a challenge. To help alleviate these problems and boost system performance generally, soft starts are useful.

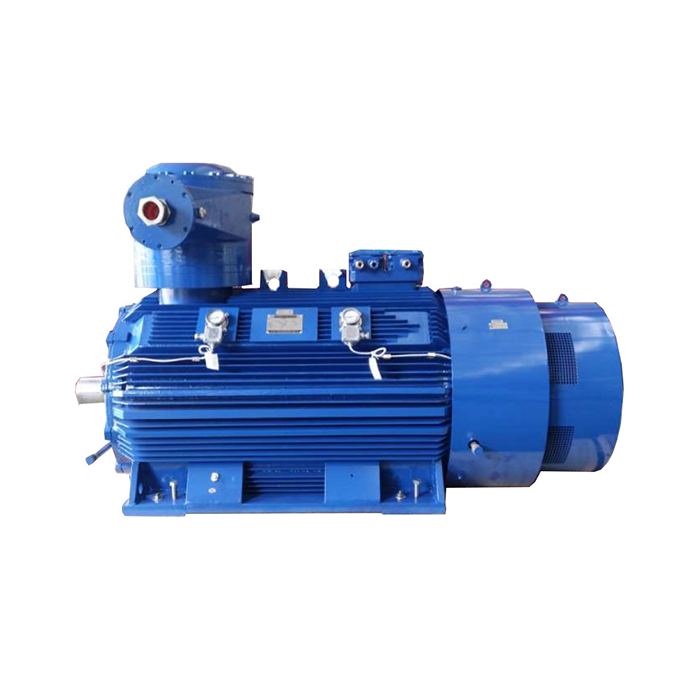

Series：YBBP-HV
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：185-1800 kW
Application：compressors, water pumps, crushers, cutting machine tools, transportation machinery.
Advantage: wide modulation range, high efficiency and energy saving, low noise, long life, high reliability.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
What Are the Key Benefits of Soft Starters for Medium Voltage Induction Motors?
Soft starters provide numerous advantages when used with medium voltage induction motors, making them a valuable addition to many industrial setups. Let's examine some of the primary benefits:
Reduced Starting Current
One of the most significant advantages of using a soft starter with a medium voltage motor is the substantial reduction in starting current. This feature is particularly beneficial in applications where the power supply is limited or where voltage dips during motor start-up could affect other equipment.
Smoother Acceleration
Soft starters allow for gradual acceleration of the motor, resulting in a smoother start-up process. This controlled ramp-up helps minimize mechanical shock to the driven equipment, reducing wear and tear on components such as gears, belts, and couplings.
Improved Energy Efficiency
By optimizing the starting process, soft starters can contribute to improved energy efficiency in motor-driven systems. The reduced peak current demand during start-up can lead to lower energy consumption and potentially reduced electricity costs.
Enhanced Motor Protection
Many soft starters come equipped with built-in protection features, such as overload protection and phase loss detection. These capabilities help safeguard the medium voltage induction motor from potential damage due to electrical faults or abnormal operating conditions.
How Do Soft Starters Reduce Mechanical Stress and Extend Motor Lifespan?
The use of soft starters with medium voltage motors can significantly impact the longevity and reliability of both the motor and the driven equipment. Here's how soft starters contribute to reducing mechanical stress and extending motor lifespan:
Gradual Torque Application
Soft starters apply torque gradually to the motor shaft, eliminating the sudden jerk associated with direct-on-line starting. This smooth torque application reduces stress on mechanical components, including the motor shaft, bearings, and coupling devices.
Minimized Mechanical Shock
By controlling the rate of acceleration, soft starters minimize the mechanical shock experienced by the entire drive system. This reduction in shock loads helps prevent premature wear of components such as gears, belts, and chains, ultimately extending the lifespan of the equipment.
Reduced Thermal Stress
The controlled start-up provided by soft starters helps limit the thermal stress on the motor windings. By avoiding excessive heat generation during starting, soft starters can contribute to prolonging the insulation life of the motor, which is a critical factor in overall motor longevity.
Prevention of Water Hammer in Pumping Applications
In applications involving pumps and piping systems, soft starters can help prevent the occurrence of water hammer. By controlling the acceleration and deceleration of the pump motor, soft starters minimize pressure surges in the piping, reducing the risk of damage to pipes, valves, and other system components.
Critical Applications: Protecting Medium Voltage Motors in Heavy-Duty Industries
Soft starters play a crucial role in protecting medium voltage induction motors in various heavy-duty industrial applications. Let's explore some critical scenarios where the use of soft starters is particularly beneficial:
Mining and Quarrying Operations
In the mining industry, large crushers, conveyors, and excavators often rely on medium voltage motors. Soft starters help protect these motors from the harsh starting conditions typical in mining environments, ensuring reliable operation and minimizing downtime.
Oil and Gas Processing Facilities
Medium voltage motors are commonly used in oil and gas processing for applications such as compressors, pumps, and large fans. Soft starters provide controlled starting for these critical motors, helping maintain process stability and reduce mechanical stress on equipment.
Wastewater Treatment Plants
Wastewater treatment facilities utilize medium voltage motors for various pumping and aeration applications. Soft starters help protect these motors from the challenges associated with starting large pumps, such as water hammer and excessive mechanical stress.
Steel Mills and Metal Processing
In the steel industry, medium voltage motors power rolling mills, furnace blowers, and other heavy-duty equipment. Soft starters play a vital role in protecting these motors from the high inertia loads and frequent starts typical in steel production processes.
Cement Manufacturing
Cement plants rely on medium voltage motors for applications such as raw mills, kilns, and finish grinding. Soft starters help manage the high starting torques required in these applications while protecting the motors and driven equipment from excessive stress.
Optimize Your Medium Voltage Motor Performance with XCMOTOR
Operating medium voltage induction motors at high altitude has its own set of unique issues, which XCMOTOR is well-versed in. When it comes to these extreme environments, our team of specialists is the go-to for motor design and manufacture. Our XCMOTOR motors are designed to operate reliably and efficiently even at high altitudes, thanks to our state-of-the-art cooling systems, strong insulation, and altitude optimisation. We are dedicated to providing solutions that satisfy your most demanding operating needs as a reliable medium voltage induction motor supplier.
Keep your activities running smoothly despite difficulties starting motors. To learn more about how our cutting-edge motor solutions may improve your unique application, contact XCMOTOR now. If you want to make sure your medium voltage motor systems are working at peak efficiency, our team of specialists is here to help.
Reach out to us at xcmotors@163.com to learn more about our medium voltage induction motor offerings and how we can help you enhance your industrial processes.
