What Are the Installation Requirements for IC611?

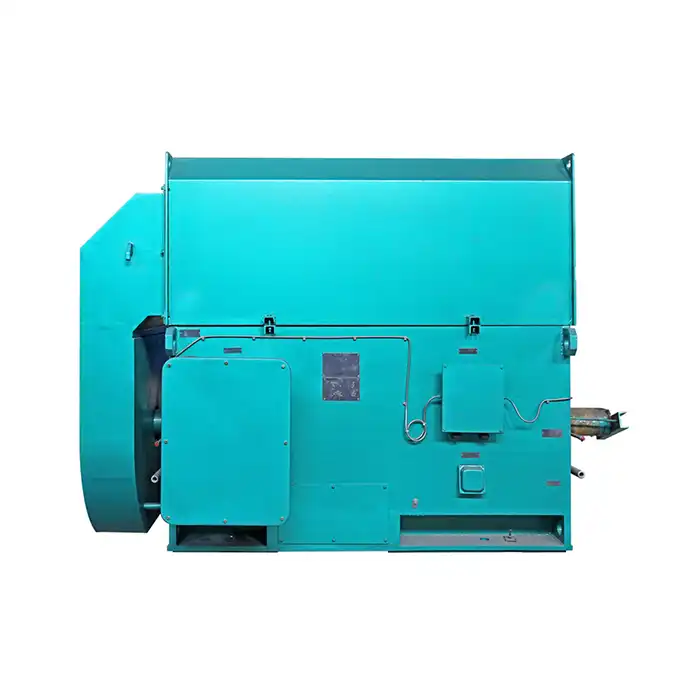

The IC611 motor stands as a true testament of engineering excellence, meticulously designed to cater to the exacting demands of modern industrial applications. Its robust construction and advanced cooling system make it an ideal choice for a wide array of high-power applications. However, to harness the full potential of this remarkable machine, proper installation is paramount. This comprehensive guide delves into the crucial installation requirements for the IC611 motor, ensuring optimal performance and longevity.

IC611 motor foundation vibration standards

The foundation upon which an IC611 motor is installed plays a pivotal role in its overall performance and lifespan. Proper vibration control is essential to prevent premature wear and tear, maintain efficiency, and ensure smooth operation.

Importance of a Solid Foundation

A solid foundation acts as the bedrock for the IC611 motor's stability. It absorbs vibrations, distributes weight evenly, and provides a level surface for precise alignment. The foundation should be constructed using high-quality, reinforced concrete, capable of withstanding the motor's weight and operational forces.

Vibration Limits and Measurements

The IC611 motor's foundation must adhere to strict vibration standards to ensure optimal performance. Generally, the maximum allowable vibration velocity should not exceed 4.5 mm/s RMS (Root Mean Square) when measured at the bearing housing. This limit applies to motors operating at speeds between 600 and 3600 rpm.

To measure vibration levels accurately, use calibrated vibration analyzers. Take measurements at multiple points on the foundation and motor, including:

• Vertical direction at each bearing housing
• Horizontal direction perpendicular to the shaft at each bearing housing
• Axial direction parallel to the shaft at each bearing housing

Vibration Isolation Techniques

To minimize vibration transmission and ensure compliance with standards, consider implementing the following techniques:

1. Inertia blocks: Install a large concrete block beneath the motor to increase mass and dampen vibrations.
2. Isolation pads: Use rubber or neoprene pads between the motor base and foundation to absorb vibrations.
3. Spring isolators: For applications with significant vibration concerns, spring isolators can provide superior isolation.
4. Flexible couplings: Employ flexible couplings between the motor and driven equipment to reduce vibration transmission.

Electrical connection specifications for IC611

Proper electrical connections are crucial for the safe and efficient operation of the IC611 motor. Adherence to precise specifications ensures optimal performance and prevents potential electrical hazards.

Power Supply Requirements

The IC611 motor operates within a specific voltage range, typically 3000V±5%, 3300V±5%, 6000V±5%, 6600V±5%, 10000V±5%, or 11000V±5%. It's essential to verify that the available power supply matches the motor's voltage requirements. Additionally, ensure that the power source can deliver the necessary current capacity to support the motor's power range of 200-3150 kW.

Cable Selection and Sizing

Selecting the appropriate cables is crucial for the IC611 motor's electrical connections. Consider the following factors when choosing cables:

• Current-carrying capacity: Cables must be sized to handle the motor's full load current with an appropriate safety margin.
• Voltage rating: Ensure cables are rated for the motor's operating voltage.
• Insulation type: Choose insulation suitable for the operating environment and temperature.
• Cable length: Account for voltage drop over long cable runs and size accordingly.

Grounding and Bonding

Proper grounding is essential for safety and performance. The IC611 motor must be grounded in accordance with local electrical codes and standards. Key grounding considerations include:

• Use of a dedicated ground conductor sized appropriately for the motor's power rating
• Bonding of the motor frame to the electrical system ground
• Installation of a ground fault protection system if required by local regulations

Terminal Box Connections

The IC611 motor's terminal box houses the connection points for power cables. When making connections:

1. Ensure the terminal box is clean and dry before making connections
2. Use appropriate lugs or terminals for secure connections
3. Tighten all connections to the manufacturer's specified torque values
4. Verify proper phase sequence to ensure correct motor rotation
5. Seal the terminal box properly to maintain the motor's IP54 protection rating

Ambient temperature limits for proper operation

The IC611 motor is designed to operate efficiently within specific ambient temperature ranges. Understanding and maintaining these limits is crucial for ensuring the motor's longevity and optimal performance.

Standard Operating Temperature Range

The IC611 motor typically operates efficiently within an ambient temperature range of -15°C to +40°C (5°F to 104°F). This range accounts for the motor's internal heat generation and its ability to dissipate heat effectively through its cooling system.

Effects of Temperature Extremes

Operating the IC611 motor outside its recommended temperature range can lead to various issues:

• Low temperatures: Can cause lubrication problems and increased viscosity, leading to higher starting torque requirements and potential bearing damage.
• High temperatures: May result in accelerated insulation degradation, reduced lubricant effectiveness, and increased risk of thermal overload.

Temperature Monitoring and Control

To ensure the IC611 motor operates within its optimal temperature range:

1. Install temperature sensors at key points on the motor, such as bearing housings and stator windings.
2. Implement a monitoring system that alerts operators when temperatures approach the upper or lower limits.
3. Ensure proper ventilation in the motor's installation area to facilitate heat dissipation.
4. Consider installing additional cooling systems for applications in high-temperature environments.

Altitude Considerations

It's important to note that the ambient temperature limits may need adjustment based on the installation altitude. For every 100 meters above 1000 meters, the maximum ambient temperature should be reduced by approximately 1°C. This adjustment accounts for the reduced air density at higher altitudes, which affects the motor's cooling efficiency.

By adhering to these installation requirements, operators can ensure that their IC611 motor performs at its peak, delivering reliable and efficient power for a wide range of industrial applications. Proper installation not only maximizes the motor's performance but also contributes significantly to its longevity and overall operational cost-effectiveness.

The IC611 motor's advanced design, coupled with meticulous installation practices, positions it as a formidable solution for high-power industrial needs. Its ability to operate efficiently under various conditions, when properly installed, makes it an invaluable asset in modern industrial settings.

Conclusion

The installation requirements for the IC611 motor are comprehensive and exacting, reflecting the sophisticated engineering behind this high-performance machine. From the foundational vibration standards to the precise electrical specifications and the critical ambient temperature limits, each aspect plays a vital role in ensuring the motor's optimal functionality and longevity.

For industries seeking reliable, high-efficiency power solutions, the IC611 motor stands out as a premier choice. Its versatility across various applications, from fans and water pumps to compressors and cutting machine tools, demonstrates its broad utility in the industrial landscape.
