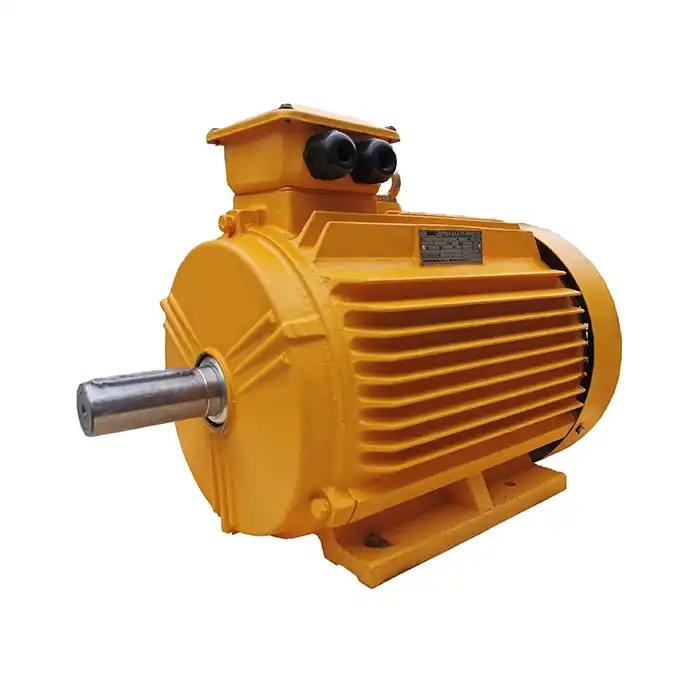

IE4 Induction Motor Specs You Should Know Before Buying

When it comes to industrial power solutions, IE4 induction motors stand at the forefront of energy efficiency and performance. These motors are increasingly offering advantages in terms of energy efficiency and performance. Whether you're in manufacturing, process control, or any industry that relies on electric motors, understanding the specifications of IE4 motors is crucial for making an informed purchase decision.

In this comprehensive guide, we'll delve into the key specifications, certifications, and selection criteria for IE4 induction motors. By the end, you'll have a clear understanding of what makes these motors stand out and how to choose the right one for your specific needs.

Key Specifications: Power, Voltage & Protection level for IE4 Motors

IE4 induction motors are designed to meet the most demanding industrial requirements while delivering exceptional energy efficiency. Let's examine the crucial specifications that define these advanced motors:

Power Range

IE4 motors typically offer a broad power range to accommodate various industrial needs. The power range for these motors generally spans from 0.75 kW to 1000 kW. This extensive range allows for application in everything from small precision equipment to large-scale industrial machinery.

Voltage Range

Flexibility in voltage options is a key feature of IE4 motors. Common voltage ratings include:

• 380V
• 400V
• 415V
• 660V

This variety ensures compatibility with different power supply systems across various regions and industrial settings.

Protection Level

IE4 motors are built to withstand challenging industrial environments. The standard protection level for these motors is typically IP55. This rating indicates:

• 5: Protection against dust ingress (dust protected)
• 5: Protection against water jets from any direction

This level of protection ensures reliable operation in dusty or moderately wet conditions, making IE4 motors suitable for a wide range of industrial applications.

Energy Efficiency Class

As the name suggests, IE4 motors belong to the IE4 energy efficiency class, which is currently one of the highest efficiency ratings available for induction motors. This classification guarantees superior energy performance, resulting in reduced operational costs and a lower environmental impact.

Speed Range

IE4 motors offer versatility in terms of operational speeds. Typical speed ranges for these motors fall between 750 rpm to 3600 rpm, with common pole configurations including 2, 4, 6, and 8 poles. This variety allows for precise speed control across different applications.

Frequency

Most IE4 motors are designed to operate at standard power frequencies of 50 Hz or 60 Hz, depending on the regional power supply standards.

What Certifications Should an IE4 Motor Have?

Certifications play a crucial role in verifying the performance and reliability of IE4 induction motors. When considering an IE4 motor, look for the following key certifications:

IEC 60034-30 Compliance

This international standard sets the efficiency classifications for single-speed, three-phase cage induction motors. IE4 motors must meet or exceed the efficiency requirements outlined in this standard.

CE Marking

For motors sold in the European Economic Area, CE marking is essential. It indicates compliance with applicable EU directives, including safety and electromagnetic compatibility requirements.

UL Certification

In North America, UL (Underwriters Laboratories) certification is often required. It ensures that the motor meets safety standards for the region.

Energy Star Certification

While not specific to IE4 motors, Energy Star certification can be an additional indicator of energy efficiency, particularly for motors used in certain commercial and industrial applications.

ISO 9001

This certification, while not specific to the motor itself, indicates that the manufacturer adheres to quality management standards in their production processes.

It's important to note that the specific certifications required may vary depending on your region and the intended application of the motor. Always verify that the IE4 motor you're considering meets all relevant local and industry-specific standards.

How to Choose the Right IE4 Motor for Your Application

Selecting the appropriate IE4 induction motor for your specific needs involves considering several factors. Here's a guide to help you make an informed decision:

Assess Your Power Requirements

Begin by accurately determining the power needs of your application. Consider factors such as:

• Load characteristics (constant or variable)
• Starting torque requirements
• Operating cycle (continuous or intermittent)
• Any potential for future capacity expansion

Choosing a motor with the right power rating ensures optimal performance and energy efficiency.

Consider the Operating Environment

Evaluate the conditions in which the motor will operate:

• Ambient temperature
• Humidity levels
• Presence of dust, chemicals, or other contaminants
• Altitude (which can affect motor cooling)

These factors will influence the required protection level (IP rating) and possibly the need for additional protective features.

Determine the Required Speed and Torque

Different applications demand varying speed and torque characteristics. Consider:

• Whether you need constant or variable speed operation
• The specific torque requirements at different operating points
• Whether you'll be using a variable frequency drive (VFD) for speed control

Evaluate Mounting and Installation Requirements

Consider the physical constraints of your installation site:

• Available space
• Mounting orientation (horizontal, vertical, or inclined)
• Need for special mounting arrangements or flanges

Analyze Life Cycle Costs

While IE4 motors may have a higher initial cost compared to lower efficiency classes, it's crucial to consider the total life cycle cost:

• Calculate potential energy savings over the motor's lifespan
• Consider maintenance requirements and associated costs
• Factor in the expected operational hours and duty cycle

In many cases, the higher efficiency of IE4 motors leads to significant long-term cost savings.

Check Compatibility with Existing Systems

If you're replacing an existing motor, ensure the IE4 motor is compatible with:

• Your current power supply and control systems
• Any existing mechanical couplings or gearboxes
• The physical dimensions of the installation space

Consider Additional Features

Depending on your application, you might need specific additional features:

• Built-in thermal protection
• Special bearing arrangements for high axial or radial loads
• Encoder or resolver for precise speed feedback
• Customized shaft or terminal box configurations

Consult with Experts

Given the complexity of motor selection, it's often beneficial to consult with motor specialists or the manufacturer directly. They can provide valuable insights based on your specific requirements and help you make the optimal choice.

By carefully considering these factors, you can select an IE4 induction motor that not only meets your immediate needs but also provides long-term value through energy savings and reliable performance.

Conclusion

IE4 induction motors represent a significant advancement in motor technology, offering unparalleled efficiency and performance for a wide range of industrial applications. By understanding the key specifications, required certifications, and selection criteria, you can make an informed decision when investing in these advanced motors.

Are you looking to upgrade your industrial power solutions with high-efficiency IE4 induction motors? Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. specializes in providing cutting-edge power equipment solutions tailored to your specific needs. Whether you're in manufacturing, process control, HVAC, energy production, or any other industry requiring reliable and efficient motor solutions, we're here to help.

Our team of experts is ready to assist you in selecting the perfect IE4 motor for your application, ensuring optimal performance, energy savings, and long-term reliability. We offer comprehensive support from pre-sales consultations to after-sales service, addressing all your technical queries promptly.

Don't miss out on the benefits of advanced IE4 motor technology. Contact us today at xcmotors@163.com to discuss your power equipment needs and discover how our IE4 induction motors can revolutionize your operations.
