How do you troubleshoot vibration a 200hp DC motor failure?
In order to resolve vibrations in a 200hp DC motor, it is necessary to implement a strategy and employ the appropriate instruments. By utilizing sophisticated analysis techniques, adhering to a step-by-step diagnosis process, and gaining knowledge of the most prevalent causes of vibration, it is possible to identify and resolve vibration issues. By consistently monitoring and maintaining your DC motor, you can prevent minor vibrations from developing into significant issues, thereby extending its lifespan and improving its efficiency.

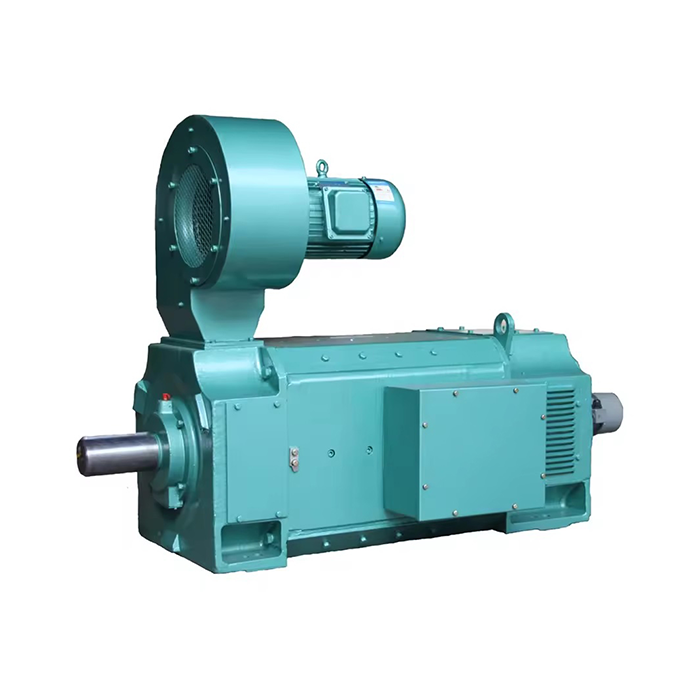

Series：Z4
Frame number: 100-450
Application:Z4 series motorsThis series of motors can be widely used in various industrial sectors such as metallurgical industrial rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, printing, cement, and plastic extrusion machinery.
Power range：1.5-600kW
Voltage range: 160V,440V, etc.
Certificate: The performance of this series of motors not only complies with the national standard GB/T755 "Basic Technical Requirements for Rotating Electrical Machines", but also basically complies with the German VDE0530 standard.
Advantage:Z4 series DC motor has greater advantages than Z2 and Z3 series. It can not only be powered by DC unit power supply, but also suitable for static rectifier power supply. It has small moment of inertia, good dynamic performance, and can withstand high load change rates. It is especially suitable for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and responsive response. It has reached the current international advanced level..
Others: SKF, NSK, FAG bearings can be replaced according to customer requirements.
Common Causes of DC Motor Vibrations
Before diving into the troubleshooting process, it's important to understand the potential sources of vibration in a 200hp DC motor. By identifying these common causes, you can more effectively diagnose and resolve the issue.
Mechanical Imbalance
One of the most frequent causes of vibration in DC motors is mechanical imbalance. This occurs when the rotor's mass is not evenly distributed around its axis of rotation. Imbalance can result from various factors, including:
- Uneven wear on rotor components
- Accumulation of debris or foreign materials
- Improper assembly or manufacturing defects
- Loss of rotor material due to corrosion or erosion
Misalignment
Misalignment between the motor shaft and the driven equipment can cause significant vibration. This misalignment can be:
- Angular: where the centerlines of the two shafts intersect at an angle
- Parallel: where the centerlines are parallel but not collinear
- Combination: a mix of both angular and parallel misalignment
Loose Components
Loose mechanical components can lead to excessive vibration in 200hp DC motors. Common culprits include:
- Loose mounting bolts
- Worn bearings
- Loose rotor bars or end rings (in wound rotor motors)
- Loose windings or commutator segments
Electrical Issues
While less common, electrical problems can also cause vibrations in DC motors. These may include:
- Uneven air gap between rotor and stator
- Damaged or shorted windings
- Improper brush tension or worn brushes
- Electrical imbalance in the power supply
Step-by-Step Vibration Diagnosis Guide
Now that we've covered the common causes of vibration in 200hp DC motors, let's walk through a systematic approach to diagnosing the issue.
Visual Inspection
Begin your troubleshooting process with a thorough visual inspection of the motor and its surrounding environment. Look for:
- Signs of physical damage or wear
- Loose mounting bolts or foundation issues
- Evidence of misalignment between motor and driven equipment
- Unusual accumulation of debris or contamination
Check Operating Conditions
Verify that the motor is operating within its designed parameters:
- Measure and compare voltage and current to nameplate ratings
- Check the motor's speed and compare it to the rated speed
- Monitor the motor's temperature during operation
- Assess the load conditions to ensure they're within acceptable limits
Vibration Measurement
Use a vibration analyzer to measure and record vibration levels at various points on the motor:
- Measure vibration in three axes: vertical, horizontal, and axial
- Take readings at the bearing housings and motor foot
- Compare measured values to ISO standards or manufacturer specifications
- Note any significant differences in vibration levels between measurement points
Frequency Analysis
Analyze the frequency spectrum of the vibration to identify potential causes:
- 1x running speed: often indicates imbalance
- 2x running speed: may suggest misalignment or looseness
- Higher harmonics: could indicate electrical issues or bearing problems
- Subharmonic frequencies: might suggest rotor bar issues in wound rotor motors
Bearing Condition Assessment
Pay special attention to the condition of the bearings, as they're often a source of vibration:
- Listen for unusual noises that might indicate bearing wear
- Check for excessive heat at the bearing housings
- Analyze high-frequency vibration data for early signs of bearing failure
- If possible, inspect the bearings visually for signs of wear or damage
Advanced Tools for DC Motor Vibration Analysis
To accurately diagnose vibration issues in a 200hp DC motor, you'll need more than just basic tools. Here are some advanced instruments and techniques that can help you pinpoint the root cause of vibration problems.
Vibration Analyzers
Modern vibration analyzers are sophisticated devices that can provide detailed insights into motor performance:
- Portable analyzers for on-site measurements
- Real-time FFT (Fast Fourier Transform) analysis
- Multi-channel data collection for simultaneous measurements
- Integration with software for trend analysis and reporting
Thermal Imaging Cameras
Thermal imaging can reveal hot spots that may be contributing to vibration:
- Identify overheating bearings or electrical components
- Detect uneven temperature distribution in the motor
- Spot potential insulation breakdowns
- Monitor temperature trends over time
Laser Alignment Tools
Precise alignment is crucial for reducing vibration in 200hp DC motors:
- Measure misalignment with micron-level accuracy
- Provide real-time adjustment guidance
- Generate detailed alignment reports
- Some systems offer continuous monitoring capabilities
Motor Current Signature Analysis (MCSA)
MCSA is a powerful technique for detecting electrical and mechanical issues:
- Analyze current waveforms to detect rotor and stator faults
- Identify issues like broken rotor bars or eccentric air gaps
- Non-invasive technique that doesn't require motor downtime
- Can detect problems before they manifest as severe vibrations
Operating Deflection Shape (ODS) Analysis
ODS analysis provides a visual representation of how a motor vibrates during operation:
- Create 3D animations of motor vibration patterns
- Identify structural resonances and mode shapes
- Helps in understanding complex vibration problems
- Useful for optimizing motor design and mounting
Conclusion
In order to resolve vibrations in a 200hp DC motor, it is necessary to implement a strategy and employ the appropriate instruments. By utilizing sophisticated analysis techniques, adhering to a step-by-step diagnosis process, and gaining knowledge of the most prevalent causes of vibration, it is possible to identify and resolve vibration issues. By consistently monitoring and maintaining your DC motor, you can prevent minor vibrations from developing into significant issues, thereby extending its lifespan and improving its efficiency.
