Soft starters vs. direct-on-line: Impact on 5HP motors
When it comes to starting 5HP motors, the choice between soft starters and direct-on-line (DOL) methods can significantly impact the motor's performance and lifespan. Let's examine the differences and their effects on 5HP induction motors.
Understanding direct-on-line starting
Direct-on-line starting is a traditional method where the full voltage is applied to the motor at once. While simple and cost-effective, this approach can lead to several issues for 5HP motors:
- High inrush current: DOL starting can draw up to 7 times the motor's rated current.
- Mechanical shock: Sudden torque application can stress motor components.
- Voltage dips: Large current draw can cause voltage drops in the power supply.
Benefits of soft starters for 5HP motors
Soft starters offer a gentler approach to motor starting, providing several advantages for 5HP induction motor applications:
- Reduced inrush current: Soft starters can limit starting current to 3-4 times the rated value.
- Gradual torque application: This minimizes mechanical stress on the motor and driven equipment.
- Smoother acceleration: Soft starters provide a controlled ramp-up of speed and torque.
- Minimized voltage fluctuations: Gradual current increase reduces the impact on the power supply.
Comparing mechanical stress levels
The mechanical stress experienced by a 5HP motor during starting can be quantified by examining factors such as:
- Starting torque: Soft starters reduce initial torque spike by up to 70% compared to DOL.
- Acceleration time: Controlled ramp-up can extend acceleration from less than a second to several seconds, distributing stress over time.
- Vibration levels: Soft starters can reduce starting vibrations by up to 50%, protecting bearings and other components.
Extending 5HP motor lifespan with soft start technology
Implementing soft start technology can significantly extend the operational life of 5HP motors. Let's examine how this technology contributes to motor longevity and reliability.
Reducing wear on mechanical components
Soft starters help minimize wear on various motor components:
- Bearings: Gradual acceleration reduces shock loads, extending bearing life.
- Shaft and couplings: Controlled torque application minimizes stress on these critical components.
- Windings: Lower inrush currents reduce thermal stress on motor windings.
Minimizing electrical stress
Electrical components of 5HP induction motors also benefit from soft starter technology:
- Insulation: Reduced voltage stress during starting helps preserve insulation integrity.
- Contactors: Lower current levels during starting reduce contact wear and arcing.
- Power factor: Soft starters can help maintain a better power factor during starting.
Improving overall system reliability
The benefits of soft starters extend beyond the motor itself:
- Driven equipment protection: Reduced mechanical shock protects pumps, fans, and other connected machinery.
- Power supply stability: Minimized voltage dips contribute to a more stable electrical system.
- Reduced maintenance: Lower stress levels can lead to fewer breakdowns and maintenance interventions.
Quantifying lifespan extension
While the exact increase in motor lifespan can vary, studies have shown that using soft starters can potentially:
- Extend bearing life by 50% or more.
- Reduce motor winding failures by up to 30%.
- Increase the mean time between failures (MTBF) by 2-3 times.
Configuring soft starters for optimal 5HP motor protection
To maximize the benefits of soft starters for 5HP motors, proper configuration is essential. Let's explore the key parameters and considerations for optimal setup.
Understanding key soft starter parameters
Several parameters influence the performance of soft starters with 5HP motors:
- Initial voltage: Typically set between 30-50% of line voltage for 5HP motors.
- Ramp-up time: Usually 2-10 seconds for 5HP applications, depending on load characteristics.
- Current limit: Often set to 300-400% of motor rated current.
- Torque control: Some advanced soft starters offer torque control for specialized applications.
Matching soft starter settings to motor characteristics
Proper configuration requires consideration of specific 5HP induction motor characteristics:
- Starting current requirements: Adjust current limit based on motor starting characteristics.
- Load inertia: Higher inertia loads may require longer ramp-up times.
- Duty cycle: Frequent starts may necessitate adjusted settings to manage heat buildup.
- Ambient conditions: Temperature and altitude can affect motor performance and starter settings.
Optimizing for different applications
Different applications of 5HP motors may require specific soft starter configurations:
- Pumps: Focus on reducing water hammer effects with appropriate ramp times.
- Fans: Configure for smooth acceleration to minimize belt stress.
- Conveyors: Adjust settings to prevent jerky starts that could damage materials.
- Compressors: Configure to manage high starting torque requirements.
Monitoring and fine-tuning
Optimal protection requires ongoing attention:
- Use built-in monitoring features to track motor performance.
- Analyze starting current and voltage profiles to identify potential improvements.
- Periodically review and adjust settings based on changing load conditions or motor wear.
- Consider advanced features like adaptive acceleration for changing load conditions.
Integrating with motor protection devices
Soft starters can work in conjunction with other protection devices:
- Overload relays: Coordinate settings to ensure comprehensive motor protection.
- Phase loss protection: Integrate with soft starter features for enhanced reliability.
- Ground fault detection: Ensure compatibility with soft starter operation.
Call to Action: Choose XCMOTOR for Superior 5HP Motor Solutions

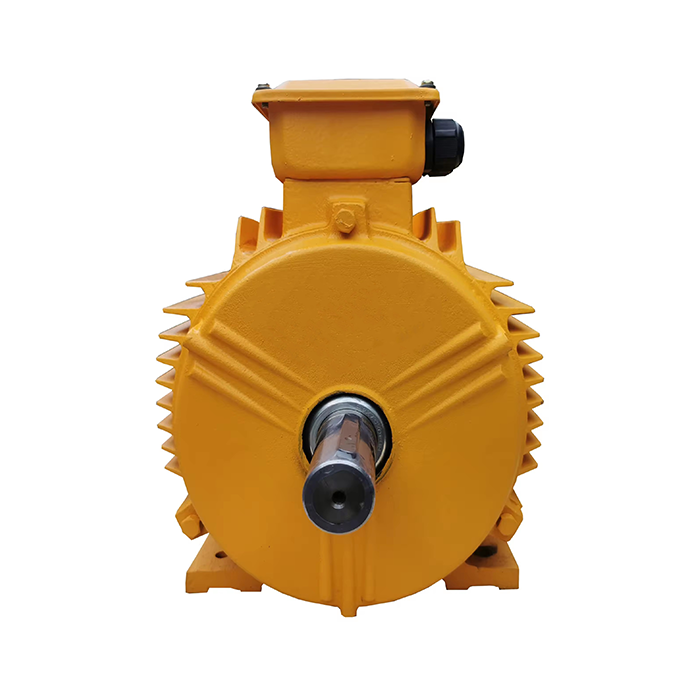

At XCMOTOR, we understand the critical role that 5HP induction motors play in various industrial applications. As a trusted 5hp induction motor manufacturer, our range of high-quality 5HP induction motors is designed to deliver optimal performance, efficiency, and durability.
