Guide to 4160 V Motor Selection & Safety
When selecting a 4160v motor for industrial applications, understanding the critical factors that impact performance and safety becomes paramount. These high-voltage electric motors operate at 4160 volts and serve demanding applications across manufacturing, power generation, and process industries. Proper selection involves evaluating power requirements, environmental conditions, protection standards, and safety protocols to ensure optimal performance and worker protection. The 4160v motor selection process requires careful consideration of electrical specifications, mechanical characteristics, and installation requirements to achieve reliable operation while maintaining strict safety standards throughout the motor's operational lifecycle.

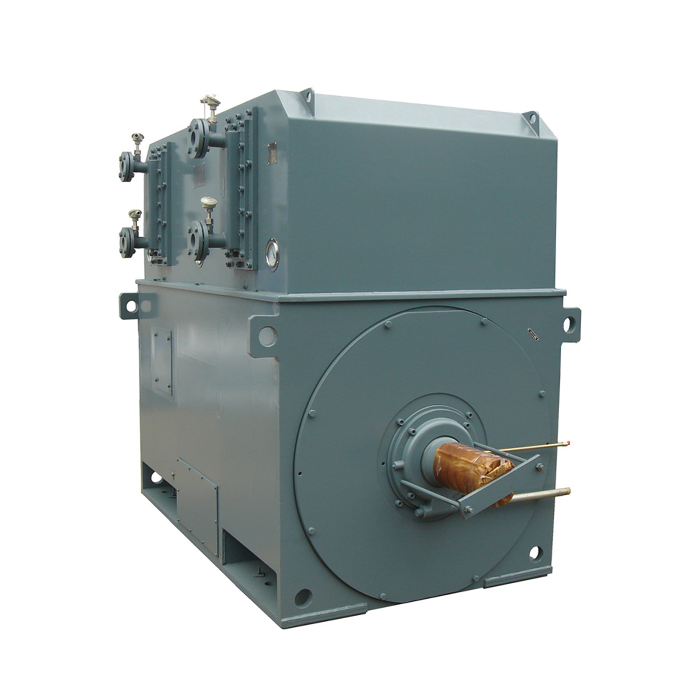

Series：YKS
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：220-6300 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：low noise, low vibration, long service life, easy installation and maintenance.
Standard: This series of products complies withGB/T 1032 and GB/T 13957 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
Understanding 4160V Motor Fundamentals
High voltage engines working at 4160 volts speak to specialized hardware planned for heavy-duty mechanical applications. These electric engines ordinarily extend from 220 kW to 6300 kW, giving significant control for requesting forms. The voltage level of 4160V falls inside the medium voltage category, requiring particular security conventions and establishment practices.
Industrial motor applications at this voltage level demand robust construction and superior insulation systems. The 4160v motor design incorporates Class F insulation with temperature rise characteristics that ensure longevity under harsh operating conditions. Understanding these fundamentals helps engineers make informed decisions about motor selection and implementation.
The electrical characteristics of these high voltage motors include specific starting torque requirements, efficiency ratings, and thermal performance capabilities. Modern 4160v motor designs achieve premium efficiency levels while maintaining low noise and vibration characteristics. These features contribute to reduced operational costs and improved workplace environments.
Safety contemplations gotten to be progressively basic as voltage levels rise. Appropriate establishing, separator coordination, and bend streak security measures must be actualized when working with 4160V frameworks. Engine assurance plans require advanced hand-off frameworks and checking hardware to guarantee secure operation.
Essential Selection Criteria for Industrial Applications
Selecting the fitting engine requires precise assessment of different specialized parameters. Control prerequisites frame the establishment of engine choice, deciding the essential torque and speed characteristics for particular applications. Stack examination makes a difference distinguish whether steady torque, variable torque, or steady drive applications drive the determination process.
Electrical & Power System Considerations
Power prerequisites build up the pattern for engine capability, with stack investigation deciding whether steady torque, variable torque, or consistent drive characteristics best suit the application. Beginning strategies advance impact both engine determination and electrical framework plan, as direct-on-line beginning, diminished voltage beginning, and variable recurrence drive applications each display unmistakable necessities. Understanding these beginning characteristics makes a difference avoid electrical framework unsettling influences and mechanical stretch whereas guaranteeing the engine coordinating consistently with existing control conveyance infrastructure.
Environmental & Mechanical Adaptation
Environmental variables essentially impact engine choice, as working temperature ranges, humidity levels, and air conditions straightforwardly influence cover frameworks and cooling requirements. Security guidelines such as IP54 give satisfactory security against tidy entrance and water sprinkling, whereas higher-rated walled areas offer improved assurance for more requesting situations. Mechanical contemplations counting mounting courses of action, shaft setups, and coupling necessities assist influence the complexity and support availability, guaranteeing dependable control transmission and decreased vibration-related issues.
Efficiency & Lifecycle Performance
Motor proficiency specifically impacts operational costs over the gear lifecycle, with premium effectiveness plans decreasing vitality utilization and warm era to contribute seriously to lower operating costs. The relationship between engine productivity and stack characteristics requires cautious investigation to optimize execution over shifting operational conditions. A appropriately chosen engine equalizations introductory capital consumption against long-term vitality reserve funds, conveying ideal add up to fetched of possession whereas keeping up unwavering quality and assembly application-specific execution requirements.
Safety Protocols and Protection Systems
Working with tall voltage engines requests comprehensive security conventions and assurance frameworks. Bend streak risks speak to the essential concern when managing with 4160V hardware. Individual defensive hardware prerequisites increment essentially at these voltage levels, requiring specialized training and security procedures.
Motor assurance transfers give fundamental protection against electrical flaws. Overcurrent assurance, differential security, and warm observing frameworks avoid engine harm and improve faculty security. These security plans must coordinate with upstream electrical hardware to guarantee specific operation amid blame conditions.
Grounding systems become critical for safe 4160v motor operation. Equipment grounding and system grounding must comply with electrical codes and industry standards. Proper grounding reduces shock hazards and provides fault current paths for protective device operation.
Lockout/tagout strategies require improved complexity for tall voltage engine upkeep. Numerous vitality sources, remaining voltage concerns, and confirmation strategies require specialized preparing and gear. Security conventions must address both electrical and mechanical vitality isolation.
Emergency reaction strategies ought to account for the special risks related to tall voltage electric engines. Crisis shutdown frameworks, fire concealment contemplations, and protect methods require particular arranging and training. Normal security preparing guarantees faculty get it the dangers and legitimate reaction procedures.
Motor Control and Variable Frequency Drives
Motor control systems for 4160v motors range from simple across-the-line starters to sophisticated variable frequency drives. The selection of control equipment depends on application requirements, starting characteristics, and operational flexibility needs. Each control method presents unique advantages and considerations.
Variable frequency drives operating at medium voltage levels provide exceptional control capabilities for 4160v motor applications. These VFD systems enable precise speed control, soft starting capabilities, and energy optimization features. However, medium voltage drives require specialized installation and maintenance considerations.
Motor starter choice includes assessing current evaluations, hindering capacity, and coordination prerequisites. Decreased voltage beginning strategies, counting autotransformer starters and delicate starters, give options for full voltage beginning. These strategies diminish electrical stretch and mechanical stun amid engine starting.
Control framework integration empowers progressed observing and symptomatic capabilities. Present day engine control centers join communication conventions that permit integration with plant automation systems. This network empowers prescient upkeep procedures and operational optimization.
Protection coordination between engine control hardware and upstream gadgets avoids disturbance stumbling and guarantees particular operation. Time-current coordination ponders offer assistance optimize security settings and move forward framework reliability.
Installation Best Practices and Standards
Proper installation practices ensure safe and reliable 4160v motor operation. Foundation design must account for motor weight, vibration characteristics, and thermal expansion. Concrete foundations require adequate curing time and proper grout installation to achieve optimal performance.
Electrical installation follows specific codes and standards for medium voltage equipment. Cable selection, termination practices, and raceway systems must comply with applicable electrical codes. Proper cable sizing accounts for voltage drop, ampacity requirements, and fault current considerations.
Conduit and cable routing require careful planning to minimize electromagnetic interference and ensure accessibility for maintenance. Separation requirements between power and control cables prevent interference issues and improve system reliability.
Connection practices for high voltage motors demand specialized techniques and materials. Torque specifications, joint compound applications, and insulation coordination require adherence to manufacturer recommendations and industry standards.
Testing and commissioning procedures verify proper installation and readiness for service. Insulation testing, phase rotation verification, and protection system testing ensure safe startup and operation. Documentation of test results provides baseline data for future maintenance activities.
Maintenance Strategies and Troubleshooting
Preventive maintenance programs extend 4160v motor life and improve reliability. Regular inspection schedules should include vibration monitoring, thermal imaging, and electrical testing. These proactive measures identify potential issues before catastrophic failures occur.
Motor winding condition assessment utilizes insulation resistance testing, polarization index measurements, and partial discharge analysis. These diagnostic techniques evaluate insulation system integrity and predict remaining useful life. Trending these measurements over time provides valuable maintenance insights.
Bearing maintenance represents a critical aspect of high voltage motor care. Proper lubrication schedules, vibration monitoring, and thermal analysis help prevent bearing failures. Quality bearings enhance motor reliability and reduce unplanned downtime.
Cooling system maintenance ensures adequate heat removal and prevents thermal damage. Air filter cleaning, cooling passage inspection, and fan operation verification maintain optimal thermal performance. Blocked cooling passages can quickly lead to motor overheating and insulation failure.
Motor efficiency monitoring identifies performance degradation and energy waste. Power quality measurements, load factor analysis, and thermal performance trending help optimize motor operation and identify maintenance needs.
Troubleshooting high voltage motors requires systematic approaches and safety precautions. Electrical testing must follow lockout/tagout procedures and utilize appropriate test equipment rated for the voltage level. Proper diagnostic techniques help identify root causes and prevent recurring failures.
Conclusion
Selecting and safely operating a 4160v motor requires careful consideration of multiple technical and safety factors. From understanding fundamental electrical characteristics to implementing comprehensive maintenance strategies, each aspect contributes to successful motor operation. Proper selection criteria, robust safety protocols, and proactive maintenance approaches ensure reliable performance and personnel protection. The investment in quality high voltage motors and proper installation practices pays dividends through improved efficiency, reduced downtime, and enhanced safety. Working with experienced suppliers and following industry best practices creates the foundation for successful 4160V motor applications across diverse industrial sectors.
Your Trusted 4160V Motor Supplier - XCMOTOR
XCMOTOR stands ready to support your high voltage motor requirements with comprehensive solutions and expert technical guidance. As an experienced 4160v motor supplier, we understand the critical nature of your industrial applications and provide reliable equipment that meets demanding operational requirements. Our team offers dedicated support including pre-sales consultation, technical specification development, and ongoing after-sales service to ensure your motor systems operate safely and efficiently. Contact our specialists at xcmotors@163.com to discuss your specific 4160v motor needs and discover how our proven solutions can enhance your operational reliability.
References
1. National Electrical Manufacturers Association. "Motors and Generators Standards Publication MG 1-2016." NEMA Standards Publication, 2016.
2. Institute of Electrical and Electronics Engineers. "IEEE Standard Test Procedure for Polyphase Induction Motors and Generators." IEEE Std 112-2017, 2018.
3. International Electrotechnical Commission. "Rotating Electrical Machines - Part 1: Rating and Performance." IEC 60034-1:2017, 2017.
4. American Petroleum Institute. "Form-wound Squirrel-cage Induction Motors - 375 kW (500 Horsepower) and Larger." API Standard 541, Fifth Edition, 2014.
5. National Fire Protection Association. "Standard for Electrical Safety in the Workplace." NFPA 70E-2021, 2021.
6. Bonnett, Austin H. "Root Cause AC Motor Failure Analysis with a Focus on Shaft Failures." IEEE Transactions on Industry Applications, Vol. 36, No. 5, 2000.
