asynchronous motor 3 phase
Protection level：IP54
Voltage range：3000V±5%,3300V±5%,6000V±5%,6600V±5%,10000V±5%,11000V±5%
Power range：160-1600 kW
Application：fans, water pumps, compressors, crushers, cutting machine tools, transportation machinery, etc.
Advantage：compact structure, light weight, low noise, small vibration, long service life, easy installation and maintenance.
Standard: This series of products complies with JB/T10444-2004 standards.
Others： SKF, NSK, FAG bearings can be replaced according to customer requirements.
- Product Description
Asynchronous Motor 3 Phase - High Voltage Variable Frequency Solutions
The aSynchronous Motor 3 phase YVF2 series represents advanced variable frequency drive technology designed for high-voltage industrial applications. Delivering power outputs from 160kW to 1600kW across voltage ranges of 3000V to 11000V, these motors feature independent forced cooling systems and Class F insulation for superior harmonic resistance. With IP54/IP55 protection and compliance to JB/T10444-2004 standards, the YVF2 series achieves constant torque operation from 5Hz to 50Hz and constant power performance up to 100Hz, ensuring reliable operation in demanding industrial environments.
Asynchronous Motor 3 Phase Manufacturer and Supplier
Shaanxi Qihe Xicheng Electromechanical Equipment Co., Ltd. brings over 20 years of expertise in power equipment solutions. We maintain strategic partnerships with 30+ motor manufacturers including ABB, Siemens, Wolong, and XEMC. Our commitment to quality is evidenced through CCC, CE, ISO9001:2000, CRCC, and UL certifications. Using SAP factory management systems and mature R&D teams, we deliver motors that combine high energy efficiency with stable power output.
Pain Points vs. Solutions
Customer Challenge | Our Solution |
Motor overheating during low-speed operation | Independent forced cooling fan with separate power supply maintains cooling efficiency at all speeds |
Insulation breakdown from harmonic distortion | Class F insulated windings specifically optimized to resist frequency converter harmonics |
High energy consumption | IE4 efficiency standards reduce operational costs by 6% compared to standard motors |
Startup impact on equipment | Smooth frequency conversion enables impact-free starting and braking |
Technical Advantages
Independent Cooling System: Separate power supply cooling fan ensures consistent thermal management regardless of motor speed, preventing low-frequency overheating.
Harmonic Protection: Specially designed winding insulation withstands voltage spikes from variable frequency drives, extending service life significantly.
Wide Speed Range: Operates smoothly from 5Hz to 100Hz with distinct constant torque and constant power zones for flexible application requirements.
Premium Components: SKF, NSK, and FAG bearing options provide superior reliability and reduced maintenance intervals.

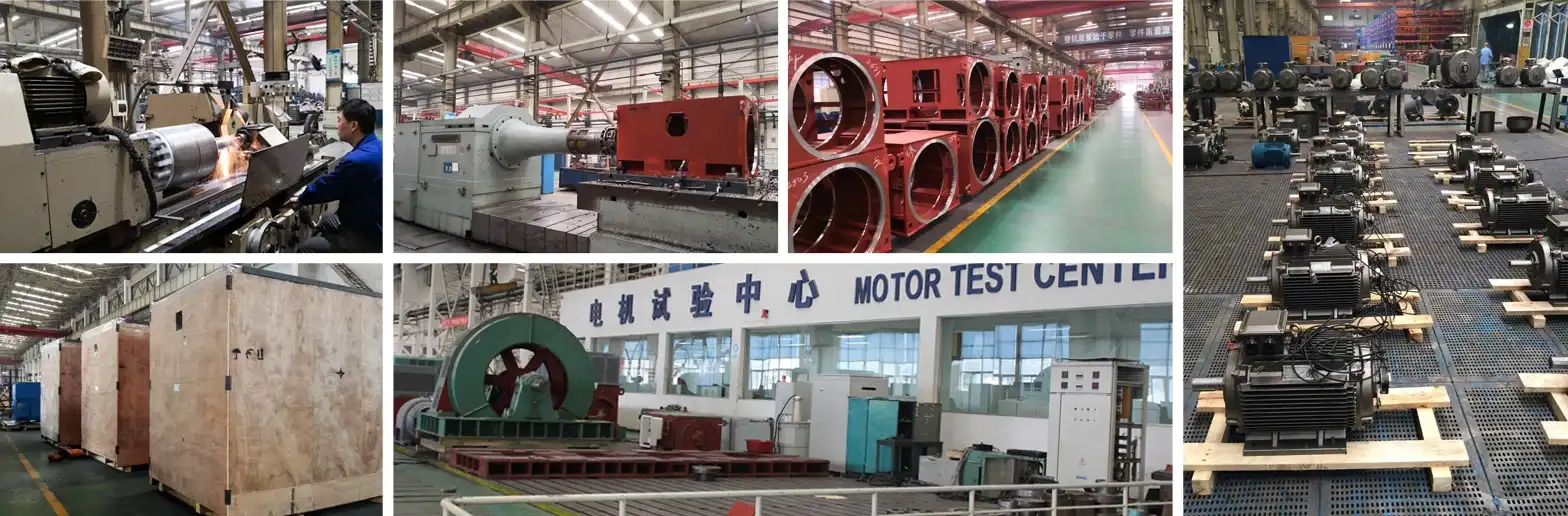

Production Process
Our manufacturing follows rigorous quality protocols:
· Raw material verification from certified suppliers only
· Advanced machining centers ensure precise dimensional accuracy
· Class F insulation application with multi-layer quality inspection
· Dynamic balancing at multiple rotational speeds
· 100% electrical testing including high-voltage insulation resistance
· Environmental condition simulation testing before delivery
Industry Applications
Metallurgical Industry: Rolling mills, conveyors requiring precise speed control
Chemical Processing: Large pumps handling corrosive media with energy-efficient operation
Mining Operations: High-pressure fans, crushers, material handling systems
Water Treatment: Drainage pumps, supply pumps requiring variable flow control
Thermal Power: Induced draft fans, boiler feed pumps with energy recovery
Paper & Textile: Continuous process machinery demanding smooth torque delivery
Customization Capabilities
We tailor asynchronous motor 3 phase to your specific requirements:
· Voltage adaptation for regional power grid standards (3000V-11000V±5%)
· Dimensional modifications for existing installation footprints
· Special bearing configurations for extreme temperatures or contaminated environments
· Custom painting and corrosion protection for marine or chemical exposure
· Multi-modal transportation arrangements including sea, land, and air freight combinations
Reliability Testing & Certifications
Every motor undergoes comprehensive validation:
· Temperature rise testing under continuous S1 duty cycles
· Vibration analysis meeting ISO 10816 standards
· Noise level verification below specified limits
· Insulation resistance testing at 1.5x rated voltage
· Load performance mapping across full frequency range
Certified to CCC, CE, ISO9001:2000, CRCC, CQC environmental management, energy-saving production certification, UL, and GOST standards.
Why Choose XCMOTOR
Trusted Supply Chain: Direct access to 30+ global motor manufacturers ensures component authenticity and competitive pricing.
Technical Expertise: Over two decades of application experience helps you select optimal power equipment matching your operational needs.
Fast Response: Dedicated support seven days weekly for pre-sales consultation and after-sales technical assistance.
Quality Guarantee: 30-day open purchase policy with free delivery on all products.
Proven Performance: SAP-managed production ensures consistent quality and appropriate delivery cycles.
FAQ
Q：What is the core structural feature of YVF2 high voltage variable frequency motor different from ordinary high voltage motors?
A：It is equipped with an independent forced cooling fan with separate power supply. The cooling effect will not decrease when the motor runs at low speed; Class F insulated winding can resist harmonic voltage impact from frequency converters, specially optimized for variable frequency working conditions.
Q：What is the speed regulation characteristic of YVF2 high voltage variable frequency motor?
A：Constant torque operation from 5Hz to 50Hz, constant power operation from 50Hz to 100Hz; wide adjustable frequency range, smooth speed change, stable startup and braking without impact load.
Q：What industries and equipment are YVF2 high voltage variable frequency motors mainly applied to?
A：Widely used in metallurgy, chemical industry, mining, water supply & drainage, thermal power, papermaking, textile. Matching equipment: high-pressure fans, large water pumps, rolling mills, conveyors and other mechanical equipment requiring energy-saving speed regulation.
Q：What are the standard protection grade, insulation class and working system of this motor?
A：Standard protection class IP54/IP55, insulation class F, continuous working system S1; allowable ambient temperature range: -15℃ ~ +40℃, applicable altitude ≤1000m.
Q：Can common high voltage motors replace YVF2 variable frequency motors when matched with frequency converters?
A：Not recommended. Ordinary high voltage motors lack independent cooling fans and anti-harmonic winding design. Long-term low-frequency operation will cause overheating and insulation aging, leading to shortened service life or burnout.
Contact Us
Ready to upgrade your industrial power systems with asynchronous motor 3 phase? Contact our technical team at XCMOTORs@163.com for customized motor solutions today.
